Invertoare de sudare - Circuite de pornire - Scheme practice
Welding inverters - Soft starters - Practical schematics


-01-
Circuit de pornire invertor de sudare - Invertor industrial 160A-
Schema electrica:

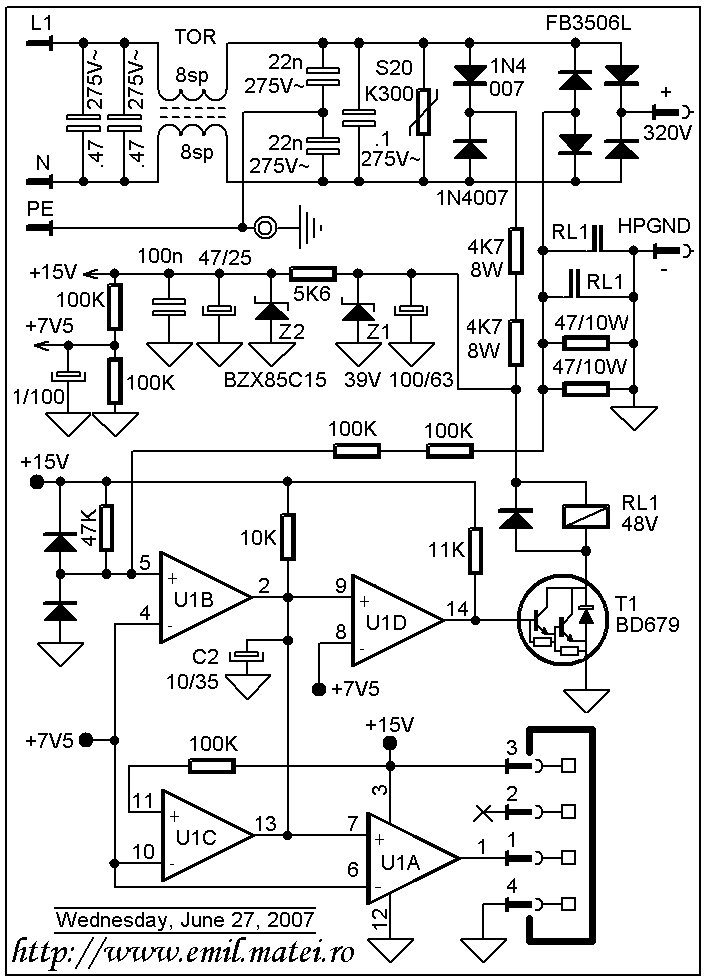

Soft Start Circuit Schematic

Circuitul imprimat (PCB):
Soft Start Circuit PCB


-02-
Circuit de pornire invertor de sudare - Invertor industrial 162A-
Schema electrica:
Soft Start Circuit Schematic

Circuitul imprimat (PCB):
Soft Start Circuit PCB 2


-03-
Circuit de pornire invertor de sudare - Invertor industrial 162A-
Schema electrica:
Soft Start Circuit Schematic


-04-
Circuit de pornire invertor de sudare - Invertor industrial 150A-
Schema electrica:
Soft Start Circuit Schematic

Circuitul imprimat (PCB):
Soft Start Circuit PCB


-05-
Circuit de pornire invertor de sudare - Invertor industrial 180A-
Schema electrica:
Soft Start Circuit Schematic

Circuitul imprimat (PCB):
Soft Start Circuit PCB 5


-06-
Circuit de pornire invertor de sudare - Invertor industrial 190A-
Schema electrica:
Soft Start Circuit Schematic

Circuitul imprimat (PCB):
Soft Start Circuit PCB


-07-
Circuit de pornire invertor de sudare - Invertor profesional 300A-
Schema electrica:
Soft Start Circuit Schematic


-08-
Circuit de pornire invertor de sudare - EDON MMA200-
Schema electrica:
Soft Start Circuit Schematic

Circuitul imprimat (PCB):
Soft Start Circuit PCB


-09-
Circuit de pornire invertor de sudare - JASIC ARC200-
Schema electrica:
Soft Start Circuit Schematic

Circuitul imprimat (PCB):
Soft Start Circuit PCB
